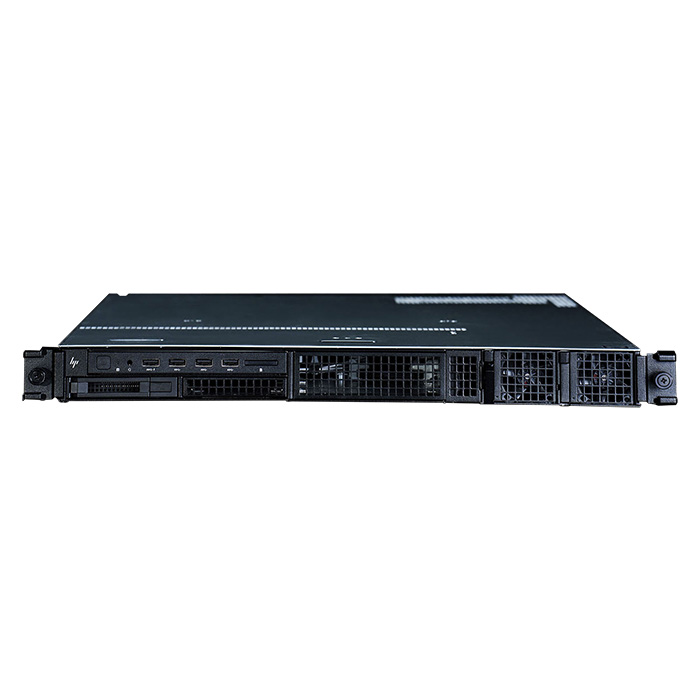

Configure Your HP ZCentral 4R Rack Workstation

Name: HP ZCentral 4R Rack
Brand: HP
Rating: 4.7 (92 reviews)
Author: Superworkstations.com

Configure
Processor
Memory
Storage | M.2
Storage | PCIe
Storage | SATA
Graphics
Front Panel
AJA | Blackmagic
Network
Power Supply
OS
KB / Mouse
Rack Kit
Processor
The HP ZCentral 4R supports one Intel Xeon W-series processor. The Hyper-Threading support allows two threads to run simultaneously on each core -- Windows recognizes 36 total cores on the Z4, 18 real and 18 virtual. It also supports "Turbo Boost" which automatically boosts the processor speed based on workload - so if an application is only using one of the 18 cores it will automatically increase the speed of the core in use and turn off the unused cores.
Intel Xeon W-2223 (3.6 GHz base frequency, 4 cores) $ more info
up to 3.9 GHz with Intel® Turbo Boost Technology, 8.25 MB cache
Intel Xeon W-2225 (4.1 GHz base frequency, 4 cores) $ more info
up to 4.6 GHz with Intel® Turbo Boost Technology, 8.25 MB cache
Intel Xeon W-2235 (3.8 GHz base frequency, 6 cores) $ more info
up to 4.6 GHz with Intel® Turbo Boost Technology, 8.25 MB cache
Intel Xeon W-2245 (3.9 GHz base frequency, 8 cores) $ more info
up to 4.5 GHz with Intel® Turbo Boost Technology, 16.5 MB cache
Intel Xeon W-2255 (3.7 GHz base frequency, 10 cores) $ more info
up to 4.5 GHz with Intel® Turbo Boost Technology, 19.25 MB cache
Intel Xeon W-2265 (3.5 GHz base frequency, 12 cores) $ more info
up to 4.6 GHz with Intel® Turbo Boost Technology, 19.25 MB cache
Intel Xeon W-2275 (3.3 GHz base frequency, 14 cores) $ more info
up to 4.6 GHz with Intel® Turbo Boost Technology, 19.25 MB cache
Intel Xeon W-2295 (3.0 GHz base frequency, 18 cores) $ more info
up to 4.6 GHz with Intel® Turbo Boost Technology, 24.75 MB cache
Memory
The HP ZCentral 4R has 4 DIMM Slots for DDR4 ECC Memory.
16GB (2x 8GB) of 2933MT/s DDR4 ECC Memory $
32GB (4x 8GB) of 2933MT/s DDR4 ECC Memory $
64GB (4x 16GB) of 2933MT/s DDR4 ECC Memory $
128GB (4x 32GB) of 2933MT/s DDR4 ECC Memory $
256GB (4x 64GB) of 2933MT/s DDR4 ECC Memory $
512GB (4x 128GB) of 2933MT/s DDR4 ECC Memory $
Storage | M.2
The HP ZCentral 4R has onboard M.2 slots supports NVMe SSDs.
Add up to 1 NVMe SSDs if you selected a Intel Core i7/i9 processor.
Add up to 2 NVMe SSDs if you selected a Intel Xeon processor.
NVMe SSDs have read/write speeds averaging 2500MB/s.
We stock only new condition, reputable brand, and latest model drives.
256GB to 2TB drives are Samsung. 4TB and 8TB drives are Sabrent.
Drive 1
Drive 2
None $
500GB NVMe M.2 PCIe 3.0 Solid-State Drive $
1TB NVMe M.2 PCIe 3.0 Solid-State Drive $
2TB NVMe M.2 PCIe 3.0 Solid-State Drive $
4TB NVMe M.2 PCIe 3.0 Solid-State Drive $
8TB NVMe M.2 PCIe 3.0 Solid-State Drive $
None $
500GB NVMe M.2 PCIe 3.0 Solid-State Drive $
1TB NVMe M.2 PCIe 3.0 Solid-State Drive $
2TB NVMe M.2 PCIe 3.0 Solid-State Drive $
4TB NVMe M.2 PCIe 3.0 Solid-State Drive $
8TB NVMe M.2 PCIe 3.0 Solid-State Drive $
Storage | PCIe
Additional NVMe M.2 SSDs can be added on a PCIe slot.
1 SSD selected | HP Z Turbo G2 will be added as the mount, installed on a PCIe x4 slot.
2 SSDs selected | HP Z Turbo Dual Pro will be added as the mount, installed on a PCIe x8 slot.
3-4 SSDs selected | HP Z Turbo Quad Pro will be added as the mount, installed on a PCIe x16 slot.
None $
HP Z Turbo Drive G2 $
HP Z Turbo Drive Dual Pro $
HP Z Turbo Drive Quad Pro $
Drive 1
Drive 2
Drive 3
Drive 4
None $
250GB NVMe M.2 PCIe 3.0 Solid-State Drive $
500GB NVMe M.2 PCIe 3.0 Solid-State Drive $
1TB NVMe M.2 PCIe 3.0 Solid-State Drive $
2TB NVMe M.2 PCIe 3.0 Solid-State Drive $
4TB NVMe M.2 PCIe 3.0 Solid-State Drive $
8TB NVMe M.2 PCIe 3.0 Solid-State Drive $
None $
250GB NVMe M.2 PCIe 3.0 Solid-State Drive $
500GB NVMe M.2 PCIe 3.0 Solid-State Drive $
1TB NVMe M.2 PCIe 3.0 Solid-State Drive $
2TB NVMe M.2 PCIe 3.0 Solid-State Drive $
4TB NVMe M.2 PCIe 3.0 Solid-State Drive $
8TB NVMe M.2 PCIe 3.0 Solid-State Drive $
None $
250GB NVMe M.2 PCIe 3.0 Solid-State Drive $
500GB NVMe M.2 PCIe 3.0 Solid-State Drive $
1TB NVMe M.2 PCIe 3.0 Solid-State Drive $
2TB NVMe M.2 PCIe 3.0 Solid-State Drive $
4TB NVMe M.2 PCIe 3.0 Solid-State Drive $
8TB NVMe M.2 PCIe 3.0 Solid-State Drive $
None $
250GB NVMe M.2 PCIe 3.0 Solid-State Drive $
500GB NVMe M.2 PCIe 3.0 Solid-State Drive $
1TB NVMe M.2 PCIe 3.0 Solid-State Drive $
2TB NVMe M.2 PCIe 3.0 Solid-State Drive $
4TB NVMe M.2 PCIe 3.0 Solid-State Drive $
8TB NVMe M.2 PCIe 3.0 Solid-State Drive $
Storage | SATA
The HP ZCentral 4R has one 3.5-inch and two 2.5-inch SATA drive bays. Arrange any combination of hard drives or solid-state drives.
SATA SSDs have read/write speeds averaging 500MB/s.
SATA Hard Drives have read/write speeds averaging 250MB/s.
We stock only new condition, reputable brand, and latest model drives.
Hard drives are Western Digital or Seagate. Solid-state drives are are Samsung.
Drive 1
Drive 2
Drive 3
None $
Solid-State Drive
500GB SATA 2.5" Solid-State Drive $
1TB SATA 2.5" Solid-State Drive $
2TB SATA 2.5" Solid-State Drive $
4TB SATA 2.5" Solid-State Drive $
8TB SATA 2.5" Solid-State Drive $
Hard Drive
1TB 7200RPM SATA 3.5" Hard Drive $
2TB 7200RPM SATA 3.5" Hard Drive $
4TB 7200RPM SATA 3.5" Hard Drive $
8TB 7200RPM SATA 3.5" Hard Drive $
12TB 7200RPM SATA 3.5" Hard Drive $
14TB 7200RPM SATA 3.5" Hard Drive $
16TB 7200RPM SATA 3.5" Hard Drive $
18TB 7200RPM SATA 3.5" Hard Drive $
20TB 7200RPM SATA 3.5" Hard Drive $
22TB 7200RPM SATA 3.5" Hard Drive $
24TB 7200RPM SATA 3.5" Hard Drive $
None $
500GB SATA 2.5" Solid-State Drive $
1TB SATA 2.5" Solid-State Drive $
2TB SATA 2.5" Solid-State Drive $
4TB SATA 2.5" Solid-State Drive $
8TB SATA 2.5" Solid-State Drive $
None $
500GB SATA 2.5" Solid-State Drive $
1TB SATA 2.5" Solid-State Drive $
2TB SATA 2.5" Solid-State Drive $
4TB SATA 2.5" Solid-State Drive $
8TB SATA 2.5" Solid-State Drive $
Graphics
The HP ZCentral 4R has two PCIe 3.0 x16 slots supporting up to two graphics cards depending on the model.

We stock the NVIDIA Quadro series graphics cards. If your application requires a AMD professional series graphics card, contact us for a custom quote.
Primary
Secondary
None $
NVIDIA Quadro Turing (2018 Release)
NVIDIA Quadro T400 2GB $ more info
NVIDIA Quadro T600 4GB $ more info
NVIDIA Quadro T1000 4GB $ more info
NVIDIA Quadro T1000 8GB $ more info
NVIDIA Quadro RTX 4000 8GB $ more info
NVIDIA Quadro RTX 5000 16GB $ more info
NVIDIA Quadro RTX 6000 24GB $ more info
NVIDIA Quadro RTX 8000 48GB $ more info
NVIDIA Quadro Ampere (2021 Release)
NVIDIA Quadro RTX A2000 6GB $ more info
NVIDIA Quadro RTX A2000 12GB $ more info
NVIDIA Quadro RTX A4000 16GB $ more info
NVIDIA Quadro RTX A4500 20GB $ more info
NVIDIA Quadro RTX A5000 24GB $ more info
NVIDIA Quadro RTX A5500 24GB $ more info
NVIDIA Quadro RTX A6000 48GB $ more info
NVIDIA Quadro Ada Lovelace (2023 Release)
NVIDIA Quadro RTX 2000 Ada 16GB $ more info
NVIDIA Quadro RTX 4000 Ada 20GB $ more info
NVIDIA Quadro RTX 4500 Ada 24GB $ more info
NVIDIA Quadro RTX 5000 Ada 32GB $ more info
NVIDIA Quadro RTX 6000 Ada 48GB $ more info
None $
NVIDIA Quadro Turing (2018 Release)
NVIDIA Quadro T400 2GB $ more info
NVIDIA Quadro T600 4GB $ more info
NVIDIA Quadro T1000 4GB $ more info
NVIDIA Quadro T1000 8GB $ more info
NVIDIA Quadro RTX 4000 8GB $ more info
NVIDIA Quadro Ampere (2021 Release)
NVIDIA Quadro RTX A4000 16GB $ more info
Front Panel
HP Base Front IO | 4x USB 3.0 Type-A $
HP Premium Front IO | 2x USB 3.0 Type-A + 2x USB 3.1 Type-C $
AJA | Blackmagic Design
None $
AJA Kona 4 | PCIe Connectivity Card $ more info
AJA Kona 5 | PCIe Connectivity Card $ more info
Blackmagic Design Intensity Pro 4K $ more info
Blackmagic Design Decklink SDI 4K - Capture & Playback Card $ more info
Blackmagic Design DeckLink 4K Studio - Capture & Playback Card $ more info
Blackmagic Design DeckLink 4K Extreme 12G - Capture & Playback Card $ more info
Blackmagic Design Decklink 8K Pro - 8K Capture & Playback Card $ more info
Network
The HP ZCentral 4R comes standard with one 1Gb and one 10Gb Ethernet ports. Add additional network ports if you connect to multiple networks.
None $
Gigabit Network
Intel i350-T2 | Dual-Port | 1Gb Ethernet Network Adapter $
Intel i350-T4 | Quad-Port | 1Gb Ethernet Network Adapter $
10 Gigabit Network
Intel X710-DA2 | Dual-Port | SFP+ | 10GbE Network Adapter $ more info
Intel X550-T2 | Dual-Port | RJ45 | 10GbE Network Adapter $ more info
Power Supply
The HP ZCentral 4R has two power supply bays supporting two HP 675 watt power supply units (PSUs) in redundant or aggregate mode. One power supply is included by default. If you select the two power supply unit option, we will select the appropriate mode in the system BIOS based on your configuration.
(1) PSU is fine for majority of configurations and if the workstation is in a accessible environment.
(2) PSUs are recommended if your configuration includes the NVIDIA Quadro A6000 graphics or you want redundancy (e.g. the workstation will be stored in a remote environment making it difficult to replace the PSU in case of a failure).
Single 675W HP Z4 Rack Power Supply $
Dual 675W HP Z4 Rack Power Supply $
Operating System
Choose the operating system that best meets your application requirements. Windows 10 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.
Operating System
None $
Windows 10 Professional 64-bit for Workstations $
Windows 11 Professional 64-bit for Workstations $
Ubuntu 24.04 LTS $
CentOS Stream 9 64-bit $ more info
Red Hat Enterprise Linux (RHEL) Workstation $ more info
Load Operating System
Do Not Load Operating System $
Load Operating System on M.2 Drive 1 $
Load Operating System on PCIe Drive 1 $
Load Operating System on SATA Drive 1 $
Keyboard
Choose your ideal keyboard.
None $
HP USB Keyboard $
HP Wireless Keyboard $
Mouse
Choose your ideal mouse.
None $
HP USB Optical Mouse $
HP Wireless Optical Mouse $
Rack Mount Kit
☑ Included
Condition more info
New $
Talk to a Specialist
(310) 916-4444
sales@superworkstations.com
Ships from Los Angeles, CA
Specifications
Save Configuration
Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.
Email
Create Quote
Add your configuration(s) to your cart if you would like to create a personalized quote.
Configuration Help
Have more questions about your configuration? Need professional assistance? We are here to help!
Click the Contact Us button to fill out a contact form with your current configuration or call us at (310) 916-4444.
$75 shipping per unit · Free local pickup
2 Year Warranty · Condition: New
Lead time: 1 to 2 weeks
See Policies & FAQ for details.
Quantity
$ 2,750

Manufacture Year(s)	2020 - current
Form Factor	1U Rack
Processor Family	Intel Xeon W Processor Family
Processors	Intel Xeon W-22xx processors (2nd Gen)
Chipset	Intel® C422
Memory	DDR4 2933MHz ECC RDIMMs - Supported with Xeon W Series CPUs 8 DIMM Slots; Max 512GB
Internal Storage	2x M.2 Slots for NVMe SSDs
External Storage	1x 3.5-inch SATA drive bay 2x 2.5-inch SATA drive bays
Networking	1x Onboard 1Gb RJ45 Ethernet LAN 1x Onboard 10Gb RJ45 Ethernet LAN
Expansion Slots	Single Slot Riser (1 PCIe G3 x16); includes a single 6+2 auxiliary power cable Dual Slot Riser* (1 PCIe G3 x16; 1 PCIe G3 x16 wired as x8); includes an additional dual 6+2 auxiliary power cable (optional)
Ports and Connectors	Standard Front Panel: 1 headset; 4 USB 3.1 (1 charging) Premium Front Panel (optional): 1 headset, 2 USB 3.1 Gen1 Type-A (1 charging), 2 USB 3.1 Gen 2 Type-C, SD Media Card Reader. Rear: 4 USB 3.1 Type-A; 1 RJ-45 (1 GbE); 1 RJ-45 (10 GbE)
Power	(2) 675W PSUs operating in redundant mode
Dimensions (W x D x H)	Base footprint without front bezel and rack brackets (H x W x D): 1.685 x 17.25 x 24.61 inches With front bezel and rack brackets (H x W x D): 7.28 x 23.22 x 25.42 inches
Weight	Minimum: 10.7 kg (23.7 lbs.) Standard: 11.7 kg (25.9 lbs) Maximum: 13.6 kg (30 lbs)

Documentation
Datasheet View | Download
Quick Specs View | Download

Datasheet	View \| Download
Quick Specs	View \| Download

Configure Your HP ZCentral 4R Rack Workstation

Configure

Processor

Memory

Storage | M.2

Storage | PCIe

Storage | SATA

Solid-State Drive

Hard Drive

Graphics

NVIDIA Quadro Turing (2018 Release)

NVIDIA Quadro Ampere (2021 Release)

NVIDIA Quadro Ada Lovelace (2023 Release)

NVIDIA Quadro Turing (2018 Release)

NVIDIA Quadro Ampere (2021 Release)

Front Panel

AJA | Blackmagic Design

Network

Gigabit Network

10 Gigabit Network

Power Supply

Operating System

Operating System

Load Operating System

Keyboard

Mouse

Rack Mount Kit

☑ Included

Condition more info

Talk to a Specialist

Specifications

Save Configuration

Create Quote

Configuration Help

Documentation

Share Configuration

Ask Our Expert Staff

Contact Us

(blank title)

Condition
