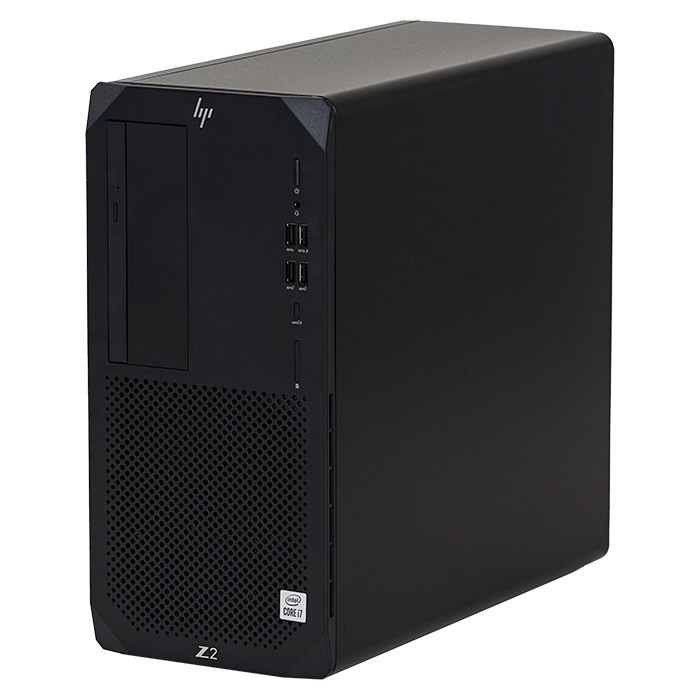

Configure Your HP Z2 G5 Tower Workstation

Name: HP Z2 G5 Tower
Brand: HP
Rating: 4.7 (92 reviews)
Author: Superworkstations.com

Configure
Processor
Memory
Storage | M.2
Storage | SATA
Optical
Graphics
Network
WiFi / BT
OS
KB / Mouse
3Dconnexion
Processor
The HP Z2 G5 Tower has one LGA1200 processor socket supporting one Intel Xeon W-series or Intel Core i7/i9 processor. Multiple processor cores allow you to run multiple applications simultaneously and boost clock speeds up to 5.2 GHz increasing performance in both single-threaded and multithreaded applications.
Intel Core 10th Gen.
Intel Core i5-10500 (6 cores, 3.1GHz base, 4.5GHz turbo) $
Intel Core i7-10700 (8 cores, 2.9GHz base, 4.8GHz turbo) $
Intel Core i7-10700K (8 cores, 3.8GHz base, 5.1GHz turbo) $
Intel Core i9-10900 (10 cores, 2.8GHz base, 5.1GHz turbo) $
Intel Core i9-10900K (10 cores, 3.7GHz base, 5.3GHz turbo) $
Intel Xeon
Intel Xeon W-1250 (6 cores, 3.3GHz base, 4.7GHz turbo) $
Intel Xeon W-1270 (8 cores, 3.4GHz base, 5.0GHz turbo) $
Intel Xeon W-1290 (10 cores, 3.2GHz base, 5.2GHz turbo) $
Memory
The HP Z2 G5 Tower has 4 DIMM Slots supporting up to 128GB DDR4 Memory. Core i7/i9 processors support UDIMM (unbuffered) memory. Xeon processors support ECC (error correcting) memory. Choose more memory to improve overall system performance.
16GB of 2933MT/s DDR4 Memory $
16GB of 2933MT/s DDR4 ECC Memory $
32GB (2x 16GB) of 2933MT/s DDR4 Memory $
32GB (2x 16GB) of 2933MT/s DDR4 ECC Memory $
64GB (4x 16GB) of 2933MT/s DDR4 Memory $
64GB (4x 16GB) of 2933MT/s DDR4 ECC Memory $
128GB (4x 32GB) of 2933MT/s DDR4 Memory $
128GB (4x 32GB) of 2933MT/s DDR4 ECC Memory $
Storage | M.2
The HP Z2 G5 Tower has 2 slots for M.2 NVMe SSDs. We recommend a NVMe SSD as the primary boot drive for the operating system and applications. A 2nd NVMe SSD can be added as a dedicated work drive for active projects files - CAD files, footage, photos, etc. NVMe M.2 SSDs perform at 2,500MB/s read and 2,000MB/s write.
M.2 Slot 1
M.2 Slot 2
None $
500GB NVMe M.2 PCIe 3.0 Solid-State Drive $
1TB NVMe M.2 PCIe 3.0 Solid-State Drive $
2TB NVMe M.2 PCIe 3.0 Solid-State Drive $
4TB NVMe M.2 PCIe 3.0 Solid-State Drive $
8TB NVMe M.2 PCIe 3.0 Solid-State Drive $
None $
500GB NVMe M.2 PCIe 3.0 Solid-State Drive $
1TB NVMe M.2 PCIe 3.0 Solid-State Drive $
2TB NVMe M.2 PCIe 3.0 Solid-State Drive $
4TB NVMe M.2 PCIe 3.0 Solid-State Drive $
8TB NVMe M.2 PCIe 3.0 Solid-State Drive $
Storage | SATA
The HP Z2 G5 Tower has 2 bays for a SATA drives. You can select a SATA drive for storage, backup, or project files. SATA SSDs perform at 550MB/s read and 500MB/s write. SATA HDDs perform at 250MB/s read and 200MB/s write.
SATA Bay 1
SATA Bay 2
None $
Solid-State Drives
500GB SATA 2.5" Solid-State Drive $
1TB SATA 2.5" Solid-State Drive $
2TB SATA 2.5" Solid-State Drive $
4TB SATA 2.5" Solid-State Drive $
8TB SATA 2.5" Solid-State Drive $
Hard Drives
1TB 7200RPM SATA 3.5" Hard Drive $
2TB 7200RPM SATA 3.5" Hard Drive $
4TB 7200RPM SATA 3.5" Hard Drive $
6TB 7200RPM SATA 3.5" Hard Drive $
8TB 7200RPM SATA 3.5" Hard Drive $
10TB 7200RPM SATA 3.5" Hard Drive $
12TB 7200RPM SATA 3.5" Hard Drive $
14TB 7200RPM SATA 3.5" Hard Drive $
16TB 7200RPM SATA 3.5" Hard Drive $
18TB 7200RPM SATA 3.5" Hard Drive $
20TB 7200RPM SATA 3.5" Hard Drive $
22TB 7200RPM SATA 3.5" Hard Drive $
24TB 7200RPM SATA 3.5" Hard Drive $
None $
Solid-State Drives
500GB SATA 2.5" Solid-State Drive $
1TB SATA 2.5" Solid-State Drive $
2TB SATA 2.5" Solid-State Drive $
4TB SATA 2.5" Solid-State Drive $
8TB SATA 2.5" Solid-State Drive $
Hard Drives
1TB 7200RPM SATA 3.5" Hard Drive $
2TB 7200RPM SATA 3.5" Hard Drive $
4TB 7200RPM SATA 3.5" Hard Drive $
6TB 7200RPM SATA 3.5" Hard Drive $
8TB 7200RPM SATA 3.5" Hard Drive $
10TB 7200RPM SATA 3.5" Hard Drive $
12TB 7200RPM SATA 3.5" Hard Drive $
14TB 7200RPM SATA 3.5" Hard Drive $
16TB 7200RPM SATA 3.5" Hard Drive $
18TB 7200RPM SATA 3.5" Hard Drive $
20TB 7200RPM SATA 3.5" Hard Drive $
22TB 7200RPM SATA 3.5" Hard Drive $
24TB 7200RPM SATA 3.5" Hard Drive $
Optical
The HP Z2 G5 Tower has 1 9.5mm and 1 5.25-inch optical bay. You can arrange any combination of optical drives, hard drives, or solid-state drives.
Slim Optical Bay
5.25-inch Optical Bay
None $
9.5mm DVD Writer Optical Drive $
9.5mm Blu-Ray Writer Optical Drive $
None $
Optical
DVD Writer Optical Drive $
Blu-Ray Writer Optical Drive $
Solid-State Drive
500GB SATA 2.5" Solid-State Drive $
1TB SATA 2.5" Solid-State Drive $
2TB SATA 2.5" Solid-State Drive $
4TB SATA 2.5" Solid-State Drive $
8TB SATA 2.5" Solid-State Drive $
Hard Drive
1TB 7200RPM SATA 3.5" Hard Drive $
2TB 7200RPM SATA 3.5" Hard Drive $
4TB 7200RPM SATA 3.5" Hard Drive $
6TB 7200RPM SATA 3.5" Hard Drive $
8TB 7200RPM SATA 3.5" Hard Drive $
10TB 7200RPM SATA 3.5" Hard Drive $
12TB 7200RPM SATA 3.5" Hard Drive $
14TB 7200RPM SATA 3.5" Hard Drive $
16TB 7200RPM SATA 3.5" Hard Drive $
18TB 7200RPM SATA 3.5" Hard Drive $
20TB 7200RPM SATA 3.5" Hard Drive $
22TB 7200RPM SATA 3.5" Hard Drive $
24TB 7200RPM SATA 3.5" Hard Drive $
Graphics
The HP Z2 G5 Tower supports 1 PCIe Gen3 x16 graphics card. We stock the NVIDIA Quadro, GeForce, and NVS series graphics cards. If your application requires the AMD Radeon Pro or FirePro series graphics card, contact us for a custom quote.
Integrated Intel UHD Graphics 630 $ more info
NVIDIA Quadro Turing (2018 Release)
NVIDIA Quadro T400 4GB $ more info
NVIDIA Quadro T600 4GB $ more info
NVIDIA Quadro T1000 4GB $ more info
NVIDIA Quadro T1000 8GB $ more info
NVIDIA Quadro RTX 4000 8GB $ more info
NVIDIA Quadro RTX 5000 16GB $ more info
NVIDIA Quadro Ampere (2021 Release)
NVIDIA Quadro RTX A2000 6GB $ more info
NVIDIA Quadro RTX A2000 12GB $ more info
NVIDIA Quadro RTX A4000 16GB $ more info
NVIDIA Quadro RTX A4500 20GB $ more info
NVIDIA Quadro RTX A5000 24GB $ more info
NVIDIA Quadro RTX A5500 24GB $ more info
NVIDIA GeForce Ampere (2020 Release)
NVIDIA GeForce RTX 3050 8GB $ more info
NVIDIA GeForce RTX 3060 12GB $ more info
NVIDIA GeForce RTX 3060 Ti 8GB $ more info
NVIDIA GeForce RTX 3070 8GB $ more info
NVIDIA GeForce RTX 3070 Ti 8GB $ more info
NVIDIA GeForce RTX 3080 10GB $ more info
NVIDIA GeForce RTX 3080 Ti 12GB $ more info
Network
The HP Z2 G5 Tower comes standard with one Gigabit (1Gb) Ethernet port.
Add additional 1GbE ports if you connect to multiple networks. Add 10GbE if your location has a 10Gb network.
None $
Gigabit Network
Intel i210-T1 | Single-Port | 1Gb Ethernet Network Adapter $
Intel i350-T2 | Dual-Port | 1Gb Ethernet Network Adapter $
Intel i350-T4 | Quad-Port | 1Gb Ethernet Network Adapter $
10 Gigabit Network
Intel X710-DA2 | Dual-Port | SFP+ | 10GbE Network Adapter $ more info
Intel X550-T2 | Dual-Port | RJ45 | 10GbE Network Adapter $ more info
Wireless
The Z2 G5 Tower comes standard with 1x RJ-45 1Gb Ethernet port. Add the Wi-Fi card if you plan connect to Wireless internet.
Intel AX200 Wi-Fi 6 PCIe Adapter +$75
Operating System
Choose the operating system that best fits your application requirements.
None $
Windows
Windows 10 Professional 64-bit for Workstations $
Windows 11 Professional 64-bit for Workstations $
Linux Distributions
Ubuntu 24.04 LTS $
CentOS Stream 9 64-bit $ more info
Keyboard
Choose your keyboard.
None $
HP USB Keyboard $
HP Wireless Keyboard $
Mouse
Choose your mouse.
None $
HP USB Optical Mouse $
HP Wireless Optical Mouse $
3Dconnexion
None $
3Dconnexion USB CADMouse $ more info
3Dconnexion USB SpaceMouse Compact $ more info
3Dconnexion USB SpaceMouse Pro $ more info
3Dconnexion USB SpaceMouse Enterprise $ more info
3Dconnexion Wireless CADMouse Pro $ more info
3Dconnexion Wireless SpaceMouse $ more info
3Dconnexion Wireless SpaceMouse Pro $ more info
Condition more info
New $
Talk to a Specialist
(310) 916-4444
sales@superworkstations.com
Ships from Los Angeles, CA
Specifications
Save Configuration
Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.
Email
Create Quote
Add your configuration(s) to your cart if you would like to create a personalized quote.
Configuration Help
Have more questions about your configuration? Need professional assistance? We are here to help!
Click the Contact Us button to fill out a contact form with your current configuration or call us at (310) 916-4444.
$50 shipping per unit · Free local pickup
2 Year Warranty · Condition: New
Lead time: 1 to 2 weeks
See Policies & FAQ for details.
Quantity
$ 1,650

Manufacture Year(s)	2020 - current
Form Factor	Minitower
Processor Socket	LGA 1200
Processor Family	Intel Xeon W Processor Family Intel Core 10th Gen Processor Family
Processors	Intel Xeon W-1250 processor Intel Core i5-10500 processor Intel Core i7-10700 processor Intel Core i7-10700K processor Intel Core i9-10900 processor Intel Core i9-10900K processor
Memory	4 DIMM Slots 3200MHz DDR4 ECC RDIMMs (up to 128 GB) - Supported with Xeon W Series CPUs DDR4 Non-ECC UDIMMs (up to 128GB) supported with Core i5/i7/i9 Series CPUs
Drive Bays	2x 3.5" (Internal) 1x 5.25" (External) 2x M.2 2280 PCIe x4 (for NVMe SSD)
Audio	Realtek HD ALC221
Networking	1 x RJ45 (Gigabit)
Expansion Slots	1 x PCIe 3.0 x16 1 x PCIe 3.0 x4 2 x PCIe 3.0 x1 1 x M.2 2230 (E-Key)
Ports and Connectors	4 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) 4 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) 2 x USB Type-A (USB 2.0) 3 x DisplayPort 1.4 Output 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm Line Input 1 x 1/8" / 3.5 mm Line Output
Power	500 W internal power supply
Dimensions (W x D x H)	15.2 x 14 x 6.7" / 386.1 x 355.6 x 170.2 mm
Weight	15.43 lb / 7 kg

Documentation
Datasheet View | Download
Quick Specs View | Download
Maintenance and Service Guide View | Download
User Guide View | Download

Datasheet	View \| Download
Quick Specs	View \| Download
Maintenance and Service Guide	View \| Download
User Guide	View \| Download
