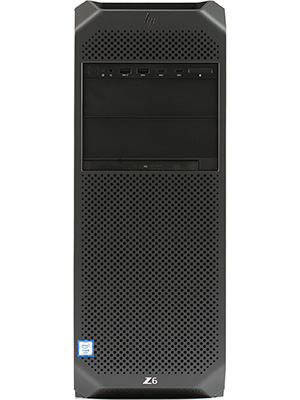

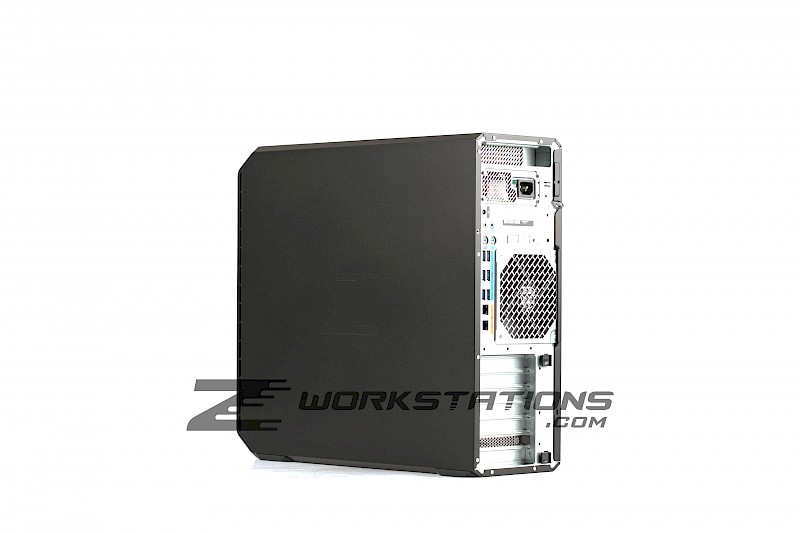

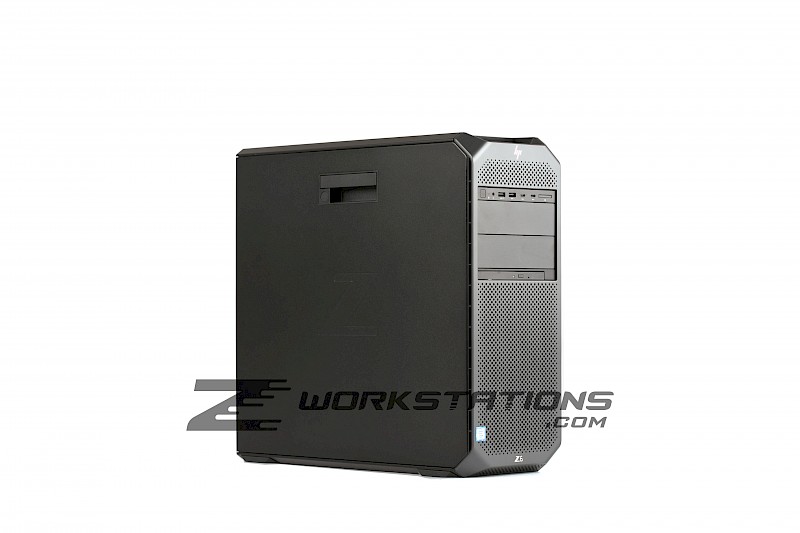

HP Z6 G4 Workstation

Configure Your HP Z6 G4 Workstation

  • Configure

    Processor

    The HP Z6 supports the latest single or dual Intel Xeon Scalable (LGA3647) processors for the ultimate performance. The Hyper-Threading support allows two threads to run simultaneously on each core -- Windows recognizes up to 112 logical cores on the Z6, 56 real and 56 virtual. It also supports "Turbo Boost" which automatically boosts the processor speed based on workload - so if an application is only using one of the 56 cores it will automatically increase the speed of the core in use and turn off the unused cores.

    Xeon Scalable (Gen 1) | Intel Launch Date: Q3'17
    Xeon Scalable (Gen 2) | Intel Launch Date: Q2'19
    Xeon Scalable (Gen 2 Refresh) | Intel Launch Date: Q1'20
    Xeon W series | Intel Launch Date: Q2'19

    • Intel Xeon Silver

      8 cores, 3.2 GHz base frequency | Intel Xeon Silver 4215R
      up to 4.0 GHz with Intel Turbo Boost Technology, 11 MB cache more info
      10 cores, 2.4 GHz base frequency | Intel Xeon Silver 4210R
      up to 3.2 GHz with Intel Turbo Boost Technology, 13.75 MB cache more info
      12 cores, 2.4 GHz base frequency | Intel Xeon Silver 4214R
      up to 3.5 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info

      Intel Xeon Gold

      8 cores, 3.9 GHz base frequency | Intel Xeon Gold 6250
      up to 4.5 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      12 cores, 3.6 GHz base frequency | Intel Xeon Gold 6256
      up to 4.5 GHz with Intel Turbo Boost Technology, 33 MB cache more info
      16 cores, 2.9 GHz base frequency | Intel Xeon Gold 6226R
      up to 3.9 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      16 cores, 3.4 GHz base frequency | Intel Xeon Gold 6246R
      up to 4.1 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      20 cores, 2.1 GHz base frequency | Intel Xeon Gold 5218R
      up to 4.0 GHz with Intel Turbo Boost Technology, 27.5 MB cache more info
      20 cores, 3.1 GHz base frequency | Intel Xeon Gold 6242R
      up to 4.1 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      24 cores, 2.2 GHz base frequency | Intel Xeon Gold 5220R
      up to 4.0 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      24 cores, 2.4 GHz base frequency | Intel Xeon Gold 6240R
      up to 4.0 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      24 cores, 3.0 GHz base frequency | Intel Xeon Gold 6248R
      up to 4.0 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      26 cores, 2.1 GHz base frequency | Intel Xeon Gold 6230R
      up to 4.0 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      28 cores, 2.2 GHz base frequency | Intel Xeon Gold 6238R
      up to 4.0 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info
      28 cores, 2.7 GHz base frequency | Intel Xeon Gold 6258R
      up to 4.0 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info
    • Intel Xeon Silver

      8 cores, 2.1 GHz base frequency | Intel Xeon Silver 4208
      up to 3.2 GHz with Intel Turbo Boost Technology, 11 MB cache more info
      8 cores, 2.5 GHz base frequency | Intel Xeon Silver 4215
      up to 3.5 GHz with Intel Turbo Boost Technology, 11 MB cache more info
      10 cores, 2.2 GHz base frequency | Intel Xeon Silver 4210
      up to 3.2 GHz with Intel Turbo Boost Technology, 13.75 MB cache more info
      12 cores, 2.2 GHz base frequency | Intel Xeon Silver 4214
      up to 3.2 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info
      16 cores, 2.1 GHz base frequency | Intel Xeon Silver 4216
      up to 3.2 GHz with Intel Turbo Boost Technology, 22 MB cache more info

      Intel Xeon Gold

      4 cores, 3.8 GHz base frequency | Intel Xeon Gold 5222
      up to 3.9 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info
      8 cores, 3.3 GHz base frequency | Intel Xeon Gold 6234
      up to 4.0 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      8 cores, 3.6 GHz base frequency | Intel Xeon Gold 6244
      up to 4.4 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      12 cores, 2.7 GHz base frequency | Intel Xeon Gold 6226
      up to 3.7 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      12 cores, 3.3 GHz base frequency | Intel Xeon Gold 6246
      up to 4.2 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      16 cores, 2.3 GHz base frequency | Intel Xeon Gold 5218
      up to 3.9 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      16 cores, 2.8 GHz base frequency | Intel Xeon Gold 6242
      up to 3.9 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      18 cores, 2.6 GHz base frequency | Intel Xeon Gold 6240
      up to 3.9 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      18 cores, 3.1 GHz base frequency | Intel Xeon Gold 6254
      up to 4.0 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      20 cores, 2.1 GHz base frequency | Intel Xeon Gold 6230
      up to 3.9 GHz with Intel Turbo Boost Technology, 27.5 MB cache more info
      20 cores, 2.5 GHz base frequency | Intel Xeon Gold 6248
      up to 3.9 GHz with Intel Turbo Boost Technology, 27.5 MB cache more info
      22 cores, 2.1 GHz base frequency | Intel Xeon Gold 6238
      up to 3.7 GHz with Intel Turbo Boost Technology, 30.25 MB cache more info
      24 cores, 2.1 GHz base frequency | Intel Xeon Gold 6252
      up to 3.7 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info

      Intel Xeon Platinum

      24 cores, 2.4 GHz base frequency | Intel Xeon Platinum 8260
      up to 3.9 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      24 cores, 2.9 GHz base frequency | Intel Xeon Platinum 8268
      up to 3.9 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      28 cores, 2.2 GHz base frequency | Intel Xeon Platinum 8276
      up to 4.0 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info
      28 cores, 2.7 GHz base frequency | Intel Xeon Platinum 8280
      up to 4.0 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info
    • Intel Xeon Silver

      4 cores, 2.6 GHz base frequency | Intel Xeon Silver 4112
      up to 3 GHz with Intel Turbo Boost Technology, 8.25 MB cache more info
      8 cores, 1.8 GHz base frequency | Intel Xeon Silver 4108
      up to 3 GHz with Intel Turbo Boost Technology, 11 MB cache more info
      10 cores, 2.2 GHz base frequency | Intel Xeon Silver 4114
      up to 3 GHz with Intel Turbo Boost Technology, 13.75 MB cache more info
      12 cores, 2.1 GHz base frequency | Intel Xeon Silver 4116
      up to 3 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info

      Intel Xeon Gold

      4 cores, 3.6 GHz base frequency | Intel Xeon Gold 5122
      up to 3.7 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info
      6 cores, 3.4 GHz base frequency | Intel Xeon Gold 6128
      up to 3.7 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      8 cores, 3.2 GHz base frequency | Intel Xeon Gold 6134
      up to 3.7 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      8 cores, 3.5 GHz base frequency | Intel Xeon Gold 6144
      up to 4.2 GHz with Intel Turbo Boost Technology, 25 MB cache more info
      12 cores, 2.3 GHz base frequency | Intel Xeon Gold 5118
      up to 3.2 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info
      12 cores, 2.6 GHz base frequency | Intel Xeon Gold 6126
      up to 3.7 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      12 cores, 3.0 GHz base frequency | Intel Xeon Gold 6136
      up to 3.7 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      12 cores, 3.2 GHz base frequency | Intel Xeon Gold 6146
      up to 4.2 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      14 cores, 2.2 GHz base frequency | Intel Xeon Gold 5120
      up to 3.2 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      14 cores, 2.6 GHz base frequency | Intel Xeon Gold 6132
      up to 3.7 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      16 cores, 2.1 GHz base frequency | Intel Xeon Gold 6130
      up to 3.7 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      16 cores, 2.6 GHz base frequency | Intel Xeon Gold 6142
      up to 3.7 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      18 cores, 2.3 GHz base frequency | Intel Xeon Gold 6140
      up to 3.7 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      18 cores, 3.0 GHz base frequency | Intel Xeon Gold 6154
      up to 3.7 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      20 cores, 2.4 GHz base frequency | Intel Xeon Gold 6148
      up to 3.7 GHz with Intel Turbo Boost Technology, 27.5 MB cache more info
      22 cores, 2.1 GHz base frequency | Intel Xeon Gold 6152
      up to 3.7 GHz with Intel Turbo Boost Technology, 30.25 MB cache more info

      Intel Xeon Platinum

      24 cores, 2.1 GHz base frequency | Intel Xeon Platinum 8160
      up to 3.7 GHz with Intel Turbo Boost Technology, 33 MB cache more info
      28 cores, 2.0 GHz base frequency | Intel Xeon Platinum 8173M
      up to 3.5 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      28 cores, 2.1 GHz base frequency | Intel Xeon Platinum 8176M
      up to 3.8 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info
      28 cores, 2.5 GHz base frequency | Intel Xeon Platinum 8180
      up to 3.8 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info

    Memory

    The HP Z6 has 6 DIMM Slots for DDR4 ECC Memory.

    Xeon Scalable Gen 1 processors support 2666MHz memory
    Xeon Scalable Gen 2 and Gen 2 Refresh processors support 2933MHz memory.

    Single / Dual Processor

    Dual Processor

    Storage | M.2

    The HP Z6 has two M.2 slots supporting NVMe SSDs.

    NVMe SSDs have read/write speeds averaging 2500MB/s.

    We stock only new condition, reputable brand, and latest model drives.
    256GB to 2TB drives are Samsung. 4TB and 8TB drives are Sabrent.

    Storage | PCIe

    Additional NVMe M.2 SSDs can be added on a PCIe slot.

    1 SSD selected | HP Z Turbo G2 will be added as the mount, installed on a PCIe x4 slot.
    2 SSDs selected | HP Z Turbo Dual Pro will be added as the mount, installed on a PCIe x8 slot.
    3-4 SSDs selected | HP Z Turbo Quad Pro will be added as the mount, installed on a PCIe x16 slot.

    Storage | SATA

    The HP Z6 has two 3.5-inch SATA3 (6GB/s) drive bays. Arrange any combination of hard drives or solid-state drives.

    SATA SSDs have read/write speeds averaging 500MB/s.
    SATA Hard Drives have read/write speeds averaging 250MB/s.

    We stock only new condition, reputable brand, and latest model drives.
    Hard drives are Western Digital or Seagate. Solid-state drives are are Samsung.

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    Optical

    The HP Z6 comes standard with a DVD Writer optical drive. Additional optical drives, hard drives, or solid-state drives can be added to the optical bays.

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    Graphics

    The HP Z6 G4 has two PCIe 3.0 x16 slots supporting up to two dual-width, full-height graphics cards.

    We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.

    Port Expansion

    The HP Z6 comes standard with 10x USB 3.0 Type-A ports. Enhance your workstation with port expansion.

    Front Panel

    Expansion

    AJA | Blackmagic Design

    Optional AJA connectivity cards and Blackmagic Design capture cards for professional video production applications. Contact us if the model you require is not listed.

    Network

    The HP Z6 comes standard with two Gigabit (1Gb) Ethernet ports. Add additional 1GbE ports if you connect to multiple networks. Add 10GbE if your location has a 10Gb network.

    Gigabit Network

    10 Gigabit Network

    Wireless + Bluetooth

    Operating System

    Choose the operating system that best meets your application requirements. Windows 10 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.

    Operating System

    Load Operating System

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    3Dconnexion

    Optional 3Dconnexion mice for professional CAD applications.

    Rack Mount Kit

    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 2,500
  • Manufacture Year(s)2018 - current
    Form FactorRackable minitower
    Processor FamilyIntel Xeon Processor Scalable Family
    ProcessorsIntel Xeon Platinum 82xx processors (2nd Gen, 2019)
    Intel Xeon Platinum 81xx processors (1st Gen, 2018)
    Intel Xeon Gold 61xxR processors (2nd Gen Refresh, 2020)
    Intel Xeon Gold 62xx processors (2nd Gen, 2019)
    Intel Xeon Gold 61xx processors (1st Gen, 2018)
    Intel Xeon Gold 52xxR processors (2nd Gen Refresh, 2020)
    Intel Xeon Gold 52xx processors (2nd Gen, 2019)
    Intel Xeon Gold 51xx processors (1st Gen, 2018)
    Intel Xeon Silver 42xxR processors (2nd Gen Refresh, 2020)
    Intel Xeon Silver 42xx processors (2nd Gen, 2019)
    Intel Xeon Silver 41xx processors (1st Gen, 2018)
    Intel Xeon Bronze 32xx processors (2nd Gen, 2019)
    Intel Xeon Bronze 31xx processors (1st Gen, 2018)
    ChipsetIntel® C622
    MemoryType: DDR4 RDIMM ECC
    Slots: 6 DIMM onboard (6 DIMM additional with optional 2nd processor riser)
    Speed: 2666MHz (1st Gen Intel Xeon Scalable), 2933MHz (1st Gen Intel Xeon Scalable)
    Capacities: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
    Maximum: 768 GB
    I/O ControllerIntegrated SATA 6.0 Gb/s
    Factory integrated RAID available for SATA/SAS drives (RAID 0, 1, and 10)
    Internal StorageUp to 4x 3.5" (or 2.5") SATA Drives
    Up to 2x M.2 NVMe PCIe SSDs M.2 on motherboard
    + Up to 4x drives on a HP Z Turbo Quad Pro x16 card
    External StorageIntegrated: DVD Writer
    Optional: Blu-Ray Writer
    Available GraphicsNVIDIA GeForce
    NVIDIA Quadro
    NVIDIA NVS
    AMD Radeon Pro
    AudioRealtek HD ALC221
    NetworkingLAN Integrated:
    Intel i219 Gigabit Ethernet controller with Intel Remote Wake UP, PXE and Jumbo frames support.
    LAN Optional:
    Intel i210 1GbE single port PCIe (Gen 3 x1) network card
    Intel i350 1GbE dual port PCIe (Gen 3 x1) network card
    Intel i350 1GbE quad port PCIe (Gen 3 x1) network card
    Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) RJ45 network card
    Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) SFP+ network card

    WLAN Optional:
    Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™
    Expansion Slots3 PCIe x4
    1 PCIe x8
    2 PCIe x16
    2 M.2 PCIe x4
    (Slot 1: CPU with open-ended connector. Slots 3 and 6: PCH with open-ended connector. Slot 4: CPU with open-ended connector (slot converts to x4 electrical when SSD is installed in 2nd M.2 slot). M.2 Slots 1 and 2: CPU up to 80 mm storage devices.)

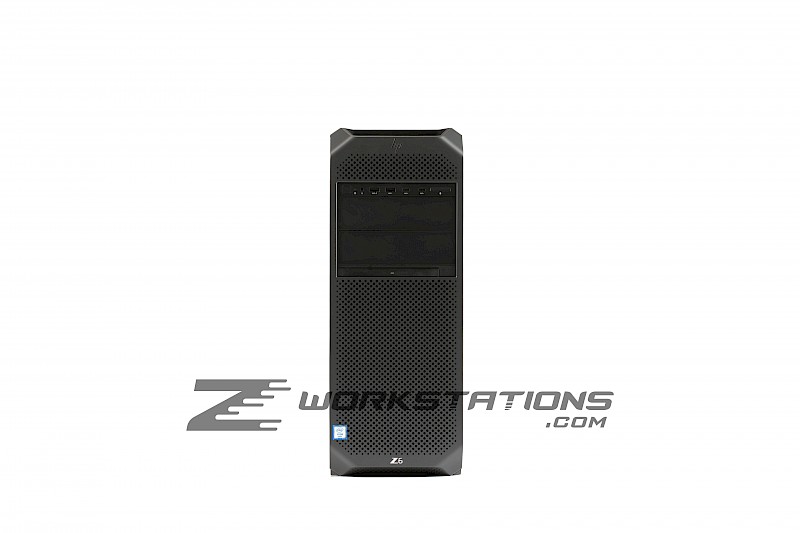

    Ports and ConnectorsStandard Front Panel: 1 headset; 4 USB 3.1 (1 charging)
    Premium Front Panel (optional): 1 headset, 2 USB 3.1 Gen1 Type-A (1 charging), 2 USB 3.1 Gen 2 Type-C, SD Media Card Reader.

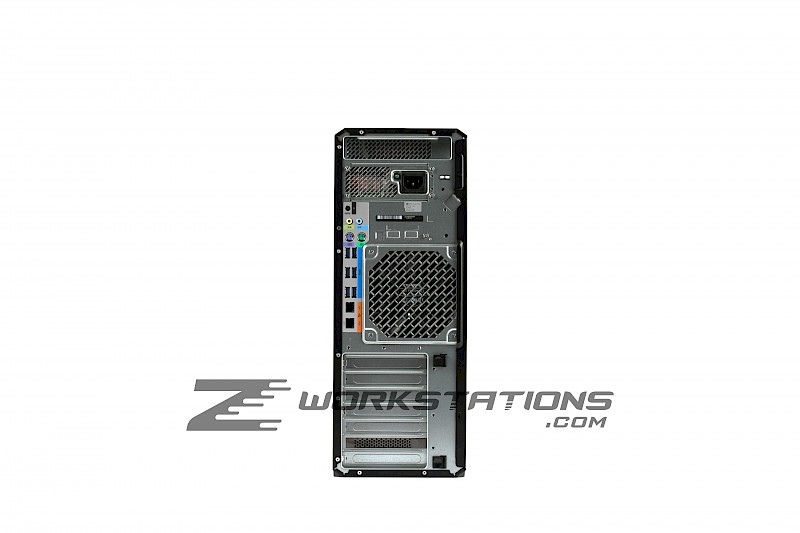

    Rear: 6 USB 3.1 Gen 1; 2 RJ-45 (1 GbE); 1 audio line out; 1 audio line in; 1 PS/2 mouse port; 1 PS/2 keyboard port; 1 serial port (optional)
    Power1000 W internal power supply, up to 90% efficiency, active PFC
    700 W internal power supply, up to 90% efficiency, active PFC
    Dimensions (W x D x H)6.65 x 18.3 x 17.5 in
    16.9 x 46.5 x 44.5 cm
    Weight29 lb
    13.1 kg
    (Exact weight depends upon configuration.)
    Energy Efficiency ComplianceENERGY STAR® certified and EPEAT® Gold registered configurations available
  • Documentation

    DatasheetView | Download
    Quick SpecsView | Download
    Maintenance and Service GuideView | Download
    Linux Compatibility MatrixView | Download
    Declaration of ConformityView | Download
    Intel® VROC for NVMe (Virtual RAID on CPU) View | Download
    Regulatory Label View | Download

To create a quote, first add this product and any other products to your cart. Then within the cart, click the "Save Quote" button.

Share Configuration

Select a method to share your configuration.

Ask Our Expert Staff

Need expert advice? We are here to help! Please fill out the form below to have a technician contact you.

Fields marked with * are required.


Contact Us

Call: (310) 916-4444 (Monday - Friday, 10am - 6pm PST)
Email: sales@superworkstations.com

(blank title)

Footer

SpecialtyIT Inc. is an independent distribution channel. [+]

SpecialtyIT Inc. is an independent distribution channel and is not associated with HP Inc, Dell Inc, Super Micro Computer Inc, or Lenovo Group Limited. HP™ and HP Z™ are trademarks of HP Inc. Dell™ and Dell Precision™ are trademarks of Dell Inc. Supermicro™ and A+ SuperWorkstation™ are trademarks of Super Micro Computer Inc. Lenovo™ and Lenovo ThinkStation™ are trademarks of Lenovo Group Limited.

Condition

New: Purchased new from the manufacturer or authorized distribution. Package opened for customization process and testing. Ships in original retail manufacturer packaging.

Refurbished: Pulled from corporate environment in working condition. Tested upon arrival at our location and also after customization. Cosmetically grade A or B. Overall in good condition, but could have light scratches / scuffs. Ships in double-wall brown box with durable packaging material.
