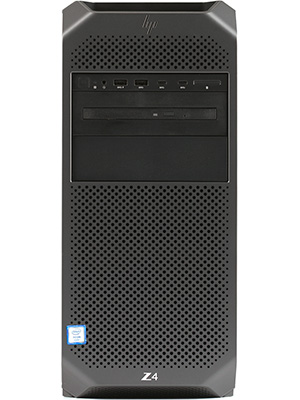

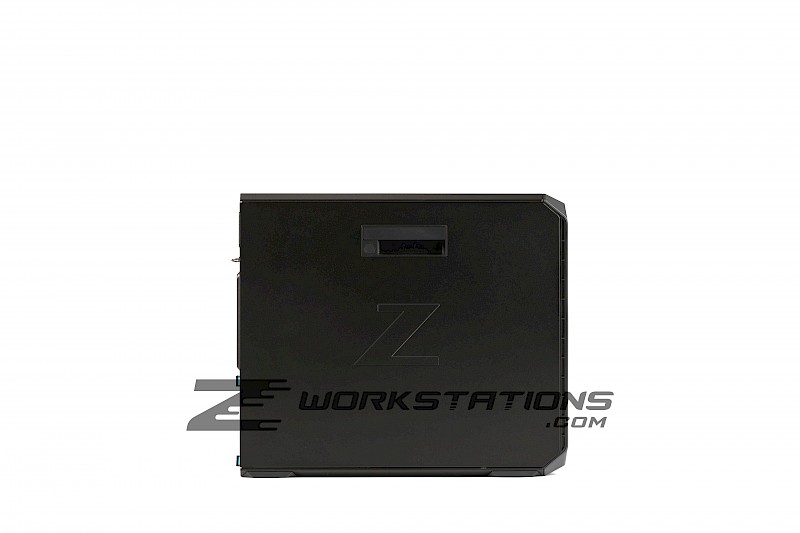

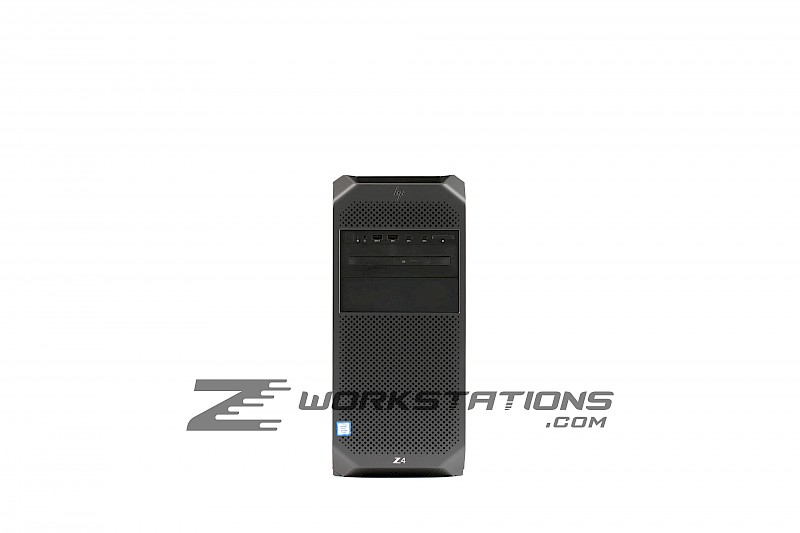

HP Z4 G4 Workstation

Configure Your HP Z4 G4 Workstation

  • Configure

    Processor

    The HP Z4 supports one Intel Xeon W-series processor. The Hyper-Threading support allows two threads to run simultaneously on each core -- Windows recognizes 36 total cores on the Z4, 18 real and 18 virtual. It also supports "Turbo Boost" which automatically boosts the processor speed based on workload - so if an application is only using one of the 18 cores it will automatically increase the speed of the core in use and turn off the unused cores.

    Gen 1 | Xeon W-2100 series | Intel Launch Date: Q3'17
    Gen 1 | Core i9-9900 series | Intel Launch Date: Q4'18
    Gen 2 | Xeon W-2200 series | Intel Launch Date: Q4'19
    Gen 2 | Core i9-10900 series | Intel Launch Date: Q4'19

    • Intel Xeon W Series

      Intel Core i9 Series

    • Intel Xeon W Series

      Intel Core i7/i9 Series

    Memory

    The HP Z4 has 8 DIMM Slots for DDR4 ECC Memory.

    Intel Xeon W-2100 processors support 2666MHz memory
    Intel Xeon W-2200 processors support 2933MHz memory.

    Storage | M.2

    The HP Z4 has onboard M.2 slots supports NVMe SSDs.

    Add up to 1 NVMe SSDs if you selected a Intel Core i7/i9 processor.
    Add up to 2 NVMe SSDs if you selected a Intel Xeon processor.

    NVMe SSDs have read/write speeds averaging 2500MB/s.

    We stock only new condition, reputable brand, and latest model drives.
    256GB to 2TB drives are Samsung. 4TB and 8TB drives are Sabrent.

    Storage | PCIe

    Additional NVMe M.2 SSDs can be added on a PCIe slot.

    1 SSD selected | HP Z Turbo G2 will be added as the mount, installed on a PCIe x4 slot.
    2 SSDs selected | HP Z Turbo Dual Pro will be added as the mount, installed on a PCIe x8 slot.
    3-4 SSDs selected | HP Z Turbo Quad Pro will be added as the mount, installed on a PCIe x16 slot.

    Storage | SATA

    The HP Z4 has two 3.5-inch SATA3 (6GB/s) drive bays. Arrange any combination of hard drives or solid-state drives.

    SATA SSDs have read/write speeds averaging 500MB/s.
    SATA Hard Drives have read/write speeds averaging 250MB/s.

    We stock only new condition, reputable brand, and latest model drives.
    Hard drives are Western Digital or Seagate. Solid-state drives are are Samsung.

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    Optical

    The HP Z4 two 5.25-inch optical drive bays supporting optical drives, hard drives, or solid-state drives.

    • Optical

      Solid-State Drive

      Hard Drive

    • Optical

      Solid-State Drive

      Hard Drive

    Graphics

    The HP Z4 G4 has two PCIe 3.0 x16 slots supporting up to two dual-width, full-height graphics cards.

    We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.

    Port Expansion

    The HP Z6 comes standard with 10x USB 3.0 Type-A ports. Enhance your workstation with port expansion.

    Front Panel

    Expansion

    AJA | Blackmagic Design

    Optional AJA connectivity cards and Blackmagic Design capture cards for professional video production applications. Contact us if the model you require is not listed.

    Network

    The HP Z4 with Intel Core i7/i9 processor comes standard with one Gigabit (1Gb) Ethernet port.
    The HP Z4 with Intel Xeon processor comes standard with two Gigabit (1Gb) Ethernet ports.

    Add additional 1GbE ports if you connect to multiple networks. Add 10GbE if your location has a 10Gb network.

    Gigabit Network

    10 Gigabit Network

    Wireless + Bluetooth

    Operating System

    Choose the operating system that best meets your application requirements. Windows 10 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.

    Operating System

    Load Operating System

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    3Dconnexion

    Optional 3Dconnexion mice for professional CAD applications.

    Rack Mount Kit

    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 1,850
  • Manufacture Year(s)2018 - current
    Form FactorRackable minitower
    Processor FamilyIntel Xeon W Processor Family
    Intel Core i7/i9 Processor Family
    ProcessorsIntel Cascade Lake W (CLX-W) and Cascade Lake X (CLX-X) CPUs
    Intel Xeon W-22xx processors (2nd Gen)
    Intel Xeon W-21xx processors (1st Gen)
    Intel Core i9-109xx processors (1st Gen)
    Intel Core i9-99xx processors (1st Gen)
    Intel Core i7-79xx processors (1st Gen)
    Intel Core i7-78xx processors (1st Gen)
    ChipsetIntel® C422
    MemoryType
    DDR4 ECC RDIMMs - Supported with Xeon W Series CPUs
    DDR4 Non-ECC UDIMMs supported with Core X Series CPUs

    Speed
    2666MHz (1st gen CPUs)
    2933MHz (2nd gen CPUs)

    Slots
    8 DIMM

    Maximum
    128 GB for Core X Sky Lake Series CPUs
    256 GB for Core X Cascade Lake Series CPUs
    512 GB for Xeon W Sky Lake Series CPUs
    512 GB for Xeon W Cascade Lake Series CPUs
    I/O ControllerIntegrated SATA 6.0 Gb/s
    Factory integrated RAID available for SATA/SAS drives (RAID 0, 1, and 10)
    Internal StorageSATA Drives
    Up to 4x 3.5" (or 2.5")

    M.2 NVMe PCIe SSDs
    Up to 2x drives on motherboard with Xeon W Series CPUs
    Up to 1x drives on motherboard with Core X Series CPUs
    + Up to 4x drives on a HP Z Turbo Quad Pro x16 card
    External StorageIntegrated: DVD Writer
    Optional: Blu-Ray Writer
    Available GraphicsNVIDIA GeForce
    NVIDIA Quadro
    NVIDIA NVS
    AMD Radeon Pro
    AudioRealtek HD ALC221
    NetworkingLAN Integrated:
    Intel i219 Gigabit Ethernet controller with Intel Remote Wake UP, PXE and Jumbo frames support.
    LAN Optional:
    Intel i210 1GbE single port PCIe (Gen 3 x1) network card
    Intel i350 1GbE dual port PCIe (Gen 3 x1) network card
    Intel i350 1GbE quad port PCIe (Gen 3 x1) network card
    Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) RJ45 network card
    Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) SFP+ network card

    WLAN Optional:
    Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™
    Expansion Slots2x PCIe x16
    1x PCIe x8
    2x PCIe x4
    Ports and ConnectorsStandard Front Panel: 1 headset; 4 USB 3.1 (1 charging)
    Premium Front Panel (optional): 1 headset, 2 USB 3.1 Gen1 Type-A (1 charging), 2 USB 3.1 Gen 2 Type-C, SD Media Card Reader.

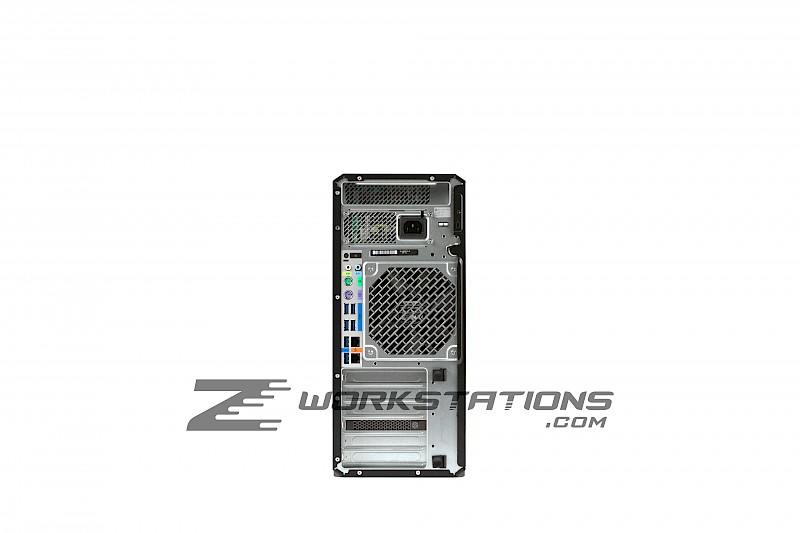

    Rear: 6 USB 3.1 Gen 1; 2 RJ-45 (1 GbE); 1 audio line out; 1 audio line in; 1 PS/2 mouse port; 1 PS/2 keyboard port; 1 serial port (optional)
    Drive BaysInternal: Two 2.5" or 3.5"
    External: Two 5.25" (or 2.5" or 3.5")
    Power1000 W internal power supply, up to 90% efficiency, active PFC
    750 W internal power supply, up to 90% efficiency, active PFC
    465 W internal power supply, up to 90% efficiency, active PFC
    Dimensions (W x D x H)15.2 x 6.65 x 17.5 in
    38.6 x 16.9 x 44.5 cm
    Weight22.4 lb
    10.2 kg
    (Exact weight depends upon configuration.)
    Energy Efficiency ComplianceENERGY STAR® certified and EPEAT® Gold registered configurations available
  • Documentation

    DatasheetView | Download
    Quick SpecsView | Download
    Maintenance and Service GuideView | Download
    Linux Compatibility MatrixView | Download
    Declaration of ConformityView | Download
    Intel® VROC for NVMe (Virtual RAID on CPU) View | Download
